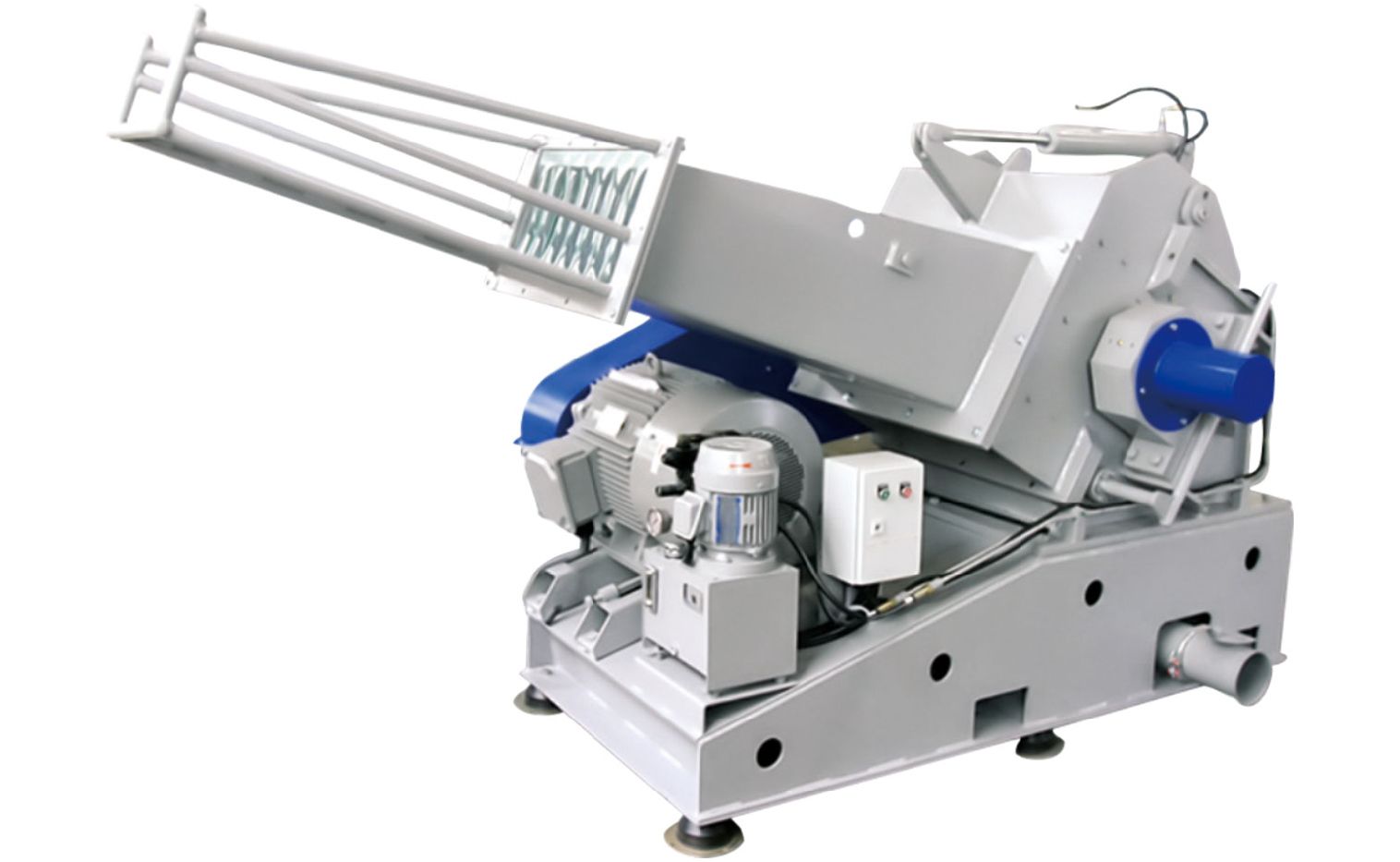

P Series — Pipe / Profile Granulators

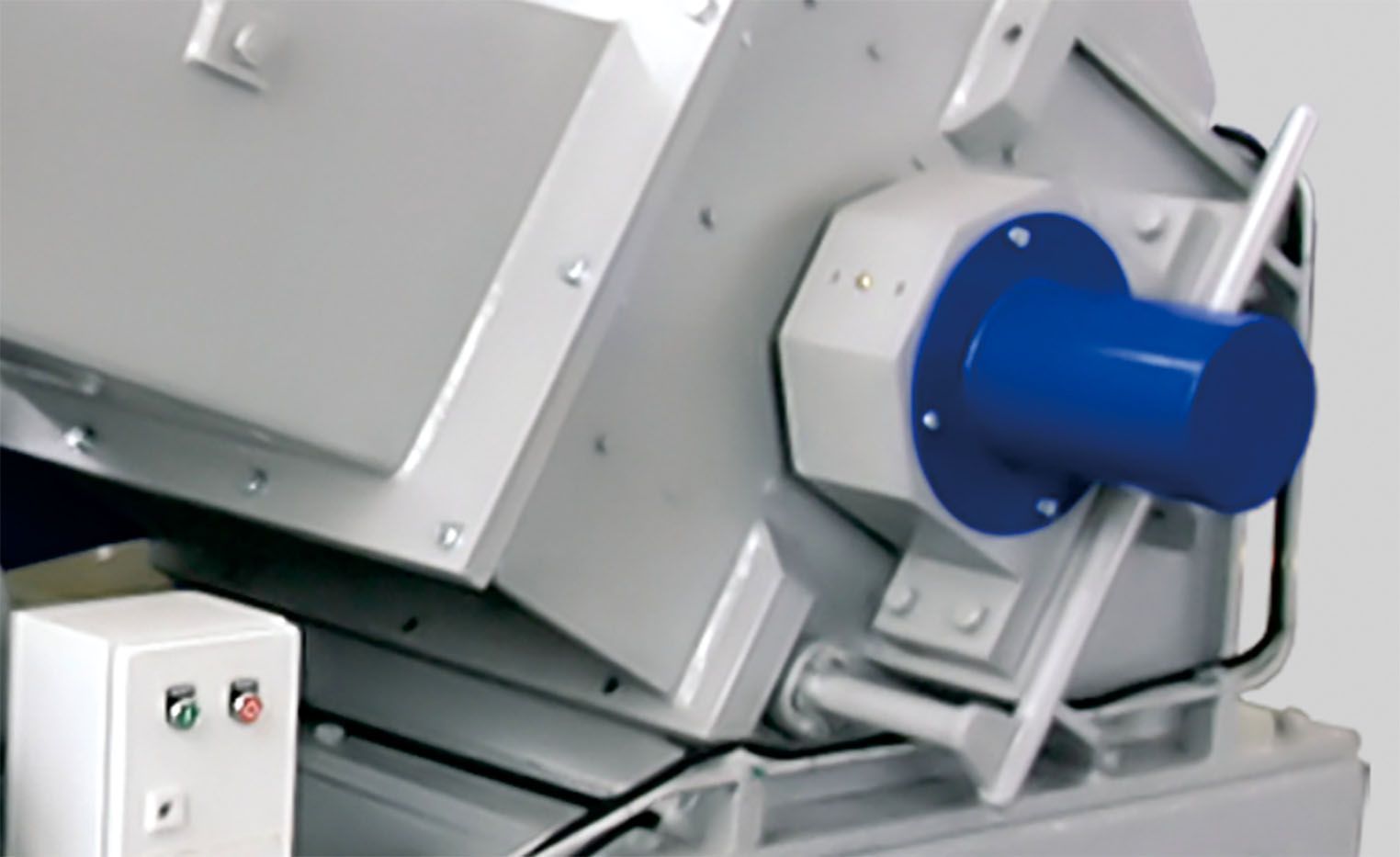

The P series pipe and profile granulators are available in rotor widths of up to 1400 mm and diameters ranging from 560 to 700 mm. The completely-welded, heavy-steel cutting chamber is angled and fitted with an extended hopper to allow easy feeding of parts. The standard V-cut creates a high-quality regrind with a very low percentage of fines in the output material. Other standard features include a hydraulically-opened hopper for outboard bearings reducing the risk of contamination.

Conventional granulators have substantial problems handling long pipes and profiles. To feed large and bulky parts in most cases cavities or platforms are needed. Therefore, Virtus Equipment developed the P range. Thanks to the almost level feeding hopper, long pieces can be fed easily. While the machine is operating there is no risk of blocking. In case of congestion, no more material will be accepted by the machine until the grinding chamber is empty, then the machine will accept material again, and work continues.
